Triflex Quartz Design is a surface finish available for Triflex ProFloor featuring a high quality, tough and durable anti-skid finish available in 2 options; large grain quartz and small grain quartz.
System build-up large grain quartz
Triflex ProFloor Quartz Design is available with a large grain quartz, either 0.7 – 1.2mm or 0.4 – 1.2mm. This provides a heavy duty, robust surface finish particularly suitable for local authority, public, social housing applications and highly used / accessed areas. The larger quartz gives exceptional impact and abrasion resistant characteristics and a high level of anti-skid.
Anti-skid
Tests carried out wet on new indicative samples in accordance with UKSRG Guidlines (2016). Based on UKSRG guidance a surface with a PTV of 36+ is classified as having a low slip potential.
With 0.7 - 1.2mm quartz:
- PTV approx. 75 (Four S rubber / Slider 96)
- PTV approx. 68 (TRRL rubber / Slider 55)
With 0.4 - 1.2mm quartz:
- PTV approx. 73 (Four S rubber / Slider 96)
- PTV approx. 70 (TRRL rubber / Slider 55)
Primers
Cryl Primer 222
Primer for asphalt, bitumen, timber and other substrates.
Overcoat / traffic: 45 minutes
Consumption: 0.40Kg/m²
Cryl Primer 276
Primer for cementitious and other substrates.
Overcoat / traffic: 45 minutes
Consumption: 0.40Kg/m²
Cryl Primer 287
Primer for cementitious and other substrates.
Overcoat / traffic: 45 minutes
Consumption: 0.40Kg/m²
Cryl Primer 280 White
Primer for cementitious and other substrates including out gassing substrates.
Overcoat / traffic: 45 minutes
Consumption: 0.40Kg/m²
Triflex Cryl Pinhole Paste
Solution to help prevention of pinholes in outgassing cementitious substrates.
Consumption: Approx. 0.25 - 0.30Kg/m2 in one step with primer. Approx. 0.40Kg/m2 in first and approx. 0.15 - 0.30Kg/m2 in second working step without primer
Waterproof wearing layer
ProFloor
Waterproof surfacing layer used in Triflex walkway, balcony and terrace systems.
Overcoat / traffic: 1 hour
Consumption: 4.00Kg/m²
Aggregate: Large grain quartz: 6.00Kg/m²
Finish
Cryl Finish 205
Finish for Triflex roofing systems and walkway, balcony and terrace systems.
Overcoat / traffic: 1 hour
Consumption: 0.55 - 0.60Kg/m².
Optional: Triflex Microchips
System build-up small grain quartz
Triflex ProFloor Quartz Design is available with a small grain quartz, either 0.4 – 0.8mm or 0.3 – 0.6mm. This provides a finish option which is more suitable to domestic applications. The smaller quartz gives an anti-skid surface that is easily cleaned and maintained.
Anti-skid
Tests carried out wet on new indicative samples in accordance with UKSRG Guidlines (2016). Based on UKSRG guidance a surface with a PTV of 36+ is classified as having a low slip potential.
With 0.4 - 0.8mm quartz:
- PTV approx. 62 (Four S rubber / Slider 96)
- PTV approx. 58 (TRRL rubber / Slider 55)
With 0.3 - 0.6mm quartz:
- PTV approx. 61 (Four S rubber / Slider 96)
- PTV approx. 42 (TRRL rubber / Slider 55)
Primers
Cryl Primer 222
Primer for asphalt, bitumen, timber and other substrates.
Overcoat / traffic: 45 minutes
Consumption: 0.40Kg/m²
Cryl Primer 276
Primer for cementitious and other substrates.
Overcoat / traffic: 45 minutes
Consumption: 0.40Kg/m²
Cryl Primer 287
Primer for cementitious and other substrates.
Overcoat / traffic: 45 minutes
Consumption: 0.40Kg/m²
Cryl Primer 280 White
Primer for cementitious and other substrates including out gassing substrates.
Overcoat / traffic: 45 minutes
Consumption: 0.40Kg/m²
Triflex Cryl Pinhole Paste
Solution to help prevention of pinholes in outgassing cementitious substrates.
Consumption: Approx. 0.25 - 0.30Kg/m2 in one step with primer. Approx. 0.40Kg/m2 in first and approx. 0.15 - 0.30Kg/m2 in second working step without primer
Waterproof surfacing layer
ProFloor
Waterproof surfacing layer used in Triflex walkway, balcony and terrace systems.
Overcoat / traffic: 1 hour
Consumption: 4.00Kg/m²
Embedment layer
Cryl Finish 205
Finish for Triflex roofing systems and walkway, balcony and terrace systems.
Overcoat / traffic: 1 hour
Consumption: 0.60Kg/m² min.
Aggregate: Small quartz 5.00Kg/m² approx.
Finish
Cryl Finish 205
Finish for Triflex roofing systems and walkway, balcony and terrace systems.
Overcoat / traffic: 1 hour
Consumption: 0.50Kg/m².
Optional: Triflex Microchips

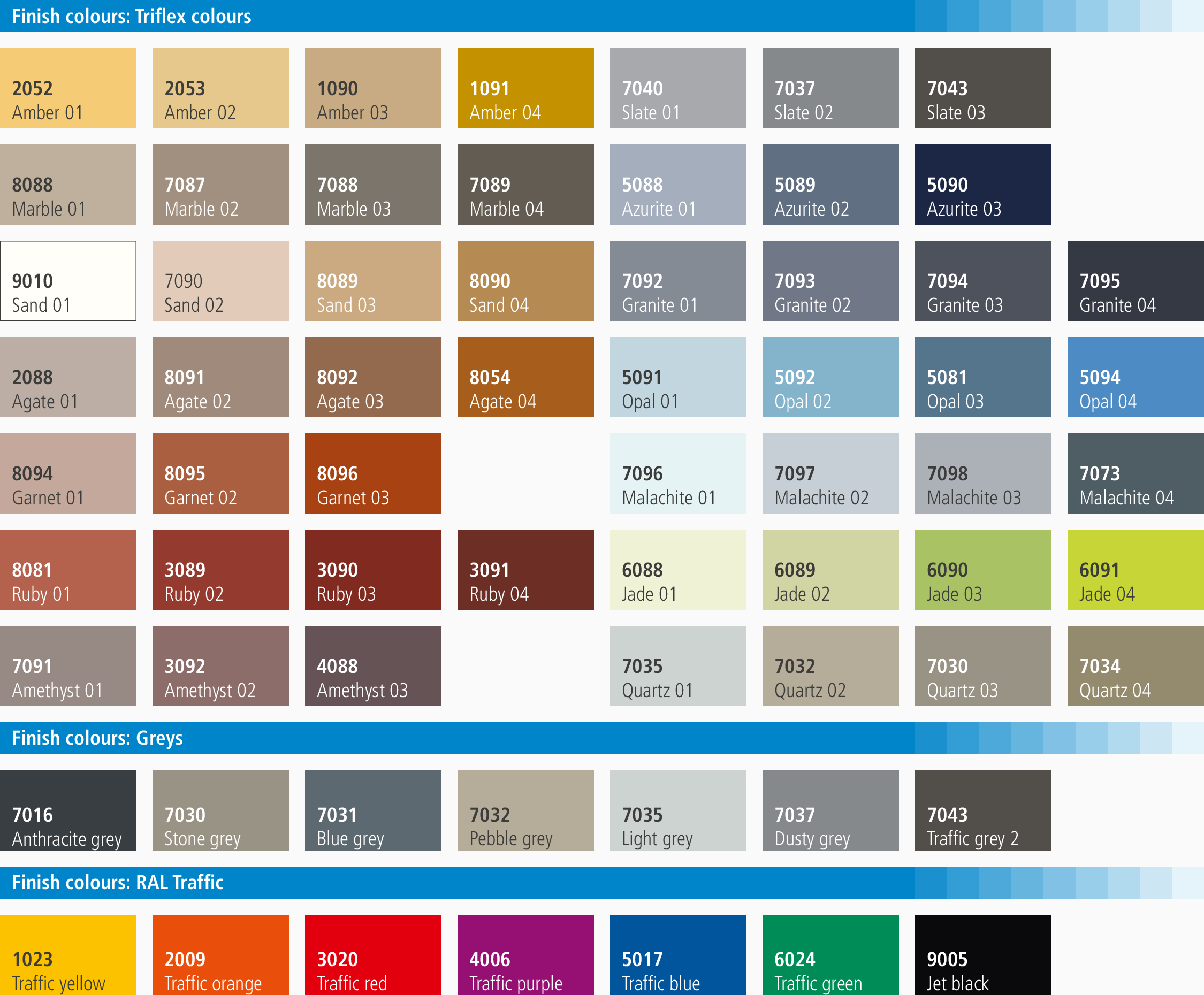

Finish colours
Triflex ProFloor with Quartz Design is available in a range of over 50 finish colours, allowing the system to be tailored to meet aesthetic and project needs. Special colours can be produced to order.
